Aaaaand now we're back for another cardboard craft;
the point of this one is to keep a small gap between the led panel and the surface behind.
This will help with heat dissipation from the panel.

What you'll need

Selected region:
World
Click to change

X-Acto #1 Precision Knife Z-Series BY X-Acto

From amazon.com

Make precise cuts; avoid your fingers

Make precise, fine cuts every time with the X-ACTO #1 Z-Series Knife with Safety Cap. This versatile

US$6.99

*price may vary

3M 9019 General Purpose Sandpaper Sheets BY 3M

From amazon.com

Roughing up a surface for better adhesiveness

3M™ General Purpose Sandpaper comes in a variety of minerals and a wide grit range. Ideal for painte

US$3.17

*price may vary

Hot Glue Gun BY TACKlife

From amazon.fr

So anyway, I started blasting

Hot Melt Glue Gun is a tool for sticking Package That Can Be Used Easily,
Don't just come hobbies DI

US$14.71

*price may vary *converted to local currency

US$14.71

*price may vary *converted to local currency

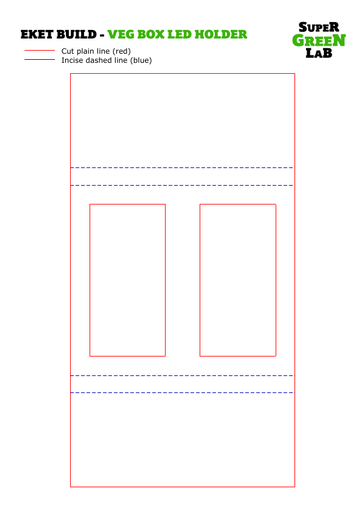

Print the pattern

Done
logo-supergreenlab

Print the pattern

Done

The veg box LED will be installed on the ceiling of the small eket so the holder is a bit different from the big eket.

Attachements Got a feedback/suggestion? click here

Use double sided tape to stick the pattern to the cardboard

Done
logo-supergreenlab

Use double sided tape to stick the pattern to the cardboard

Done

If you are still unfamiliar with the secret SGL double sided tape recipe here it is:
take a small piece of regular tape and join the 2 ends with the sticky part on the outside.

Got a feedback/suggestion? click here

Cut plain lines

Done
logo-supergreenlab

Cut plain lines

Done

Cut the plain red lines (outer lines and rectangles inside).

Got a feedback/suggestion? click here

Incise dashed lines

Done
logo-supergreenlab

Incise dashed lines

Done

These 4 dashed lines will be bent, incise along those for easier bending.
Do not cut through.

Got a feedback/suggestion? click here

Bend cardboard along the incised lines

Done
logo-supergreenlab

Bend cardboard along the incised lines

Done

Gently bend the LED holder to it's final shape.

Got a feedback/suggestion? click here

Tape the LED to the holder

Done
logo-supergreenlab

Tape the LED to the holder

Done

Taping the LED to the holder is a simple and convenient way of attaching them.
Glue residue can be easily removed with iso.

Got a feedback/suggestion? click here

Tape the LED holder shut

Done
logo-supergreenlab

Tape the LED holder shut

Done

Bend the the 2 flaps back and tape them together.

Got a feedback/suggestion? click here

Glue the LED holder in place

Done
logo-supergreenlab

Glue the LED holder in place

Done

Best use sandpaper to rough up the area for better adherence.
Plug the LED cable before gluing the holder in place.

Got a feedback/suggestion? click here
